6k TK Electric Brake Cambered RV Trailer Axle – 6000 lb – 6×5.5 Lug
$1,327
6K Heavy Duty Tandem Axle Kit — Cambered RV — 12K capacity | Axles with Suspension
Complete tandem running gear without tires: two electric brake axles, plus matched tandem suspension. 12,000 lb combined capacity.
Axle Specifications:
- Load rating: 6,000 lbs (6K)
- Axle type: Electric Brake
- Brake size: 12″ × 2″ electric drum
- Tube diameter: 3″ cambered axle tube
- Hubface/Spring Center: 85/68.5
- Bolt pattern: 6×5.5
- Stud size: 1/2″
- Spring mount: Underslung
- Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
- ABS: Not compatible with ABS systems

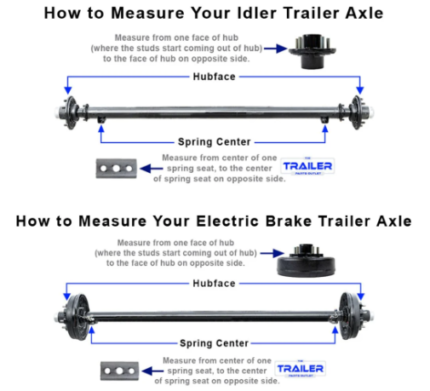

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

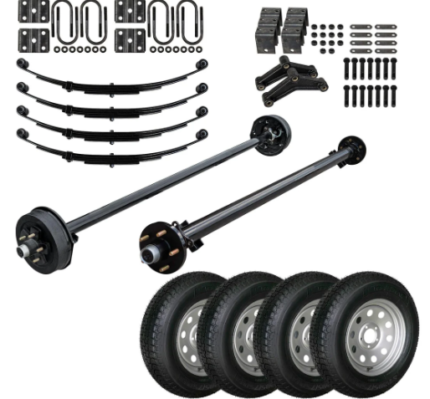

What’s Included:
- (2) Fully Assembled 6k TK Electric Brake Axle — Cambered — 85/68.5 — 6×5.5
- (4) 3k 25.25″ 5-Leaf Double Eye Springs
- (2) 6k U-Bolt Kits
- (1) Double Eye Tandem Hanger Kit
Key Benefits:
- Fully assembled & packed with high-temp axle grease — ready for fast installation
- High-strength steel construction — Ensures durability and a smoother highway towing experience
- EZ-Lube design — grease the axle via zerk fitting without removing the hub
- Pre-Packaged Fitment — Matched components, no cross-referencing parts
- Cambered Axle Design — Slight upward bend flattens under load for straighter tracking and reduced tire wear
Ideal For:
- RV builds or replacements
- Utility trailer conversions
- Boat trailer upgrades
- Cargo & equipment trailers
Why Buy from The Trailer Parts Outlet?
- This Axle is proudly manufactured in the U.S.A.
- Fast shipping — order today, ships tomorrow
- Bulk & wholesale options available
- Financing options
- Dedicated expert support
