93-Inch Galvanized Torsion Drop Center Trailer Axle with Hubs (3,500 lb.) #G-46394A
$599
“93” Galvanized Torsion Drop Center Trailer Axle w/Hubs (3,500 lb.) #G-46394A
Product Description:

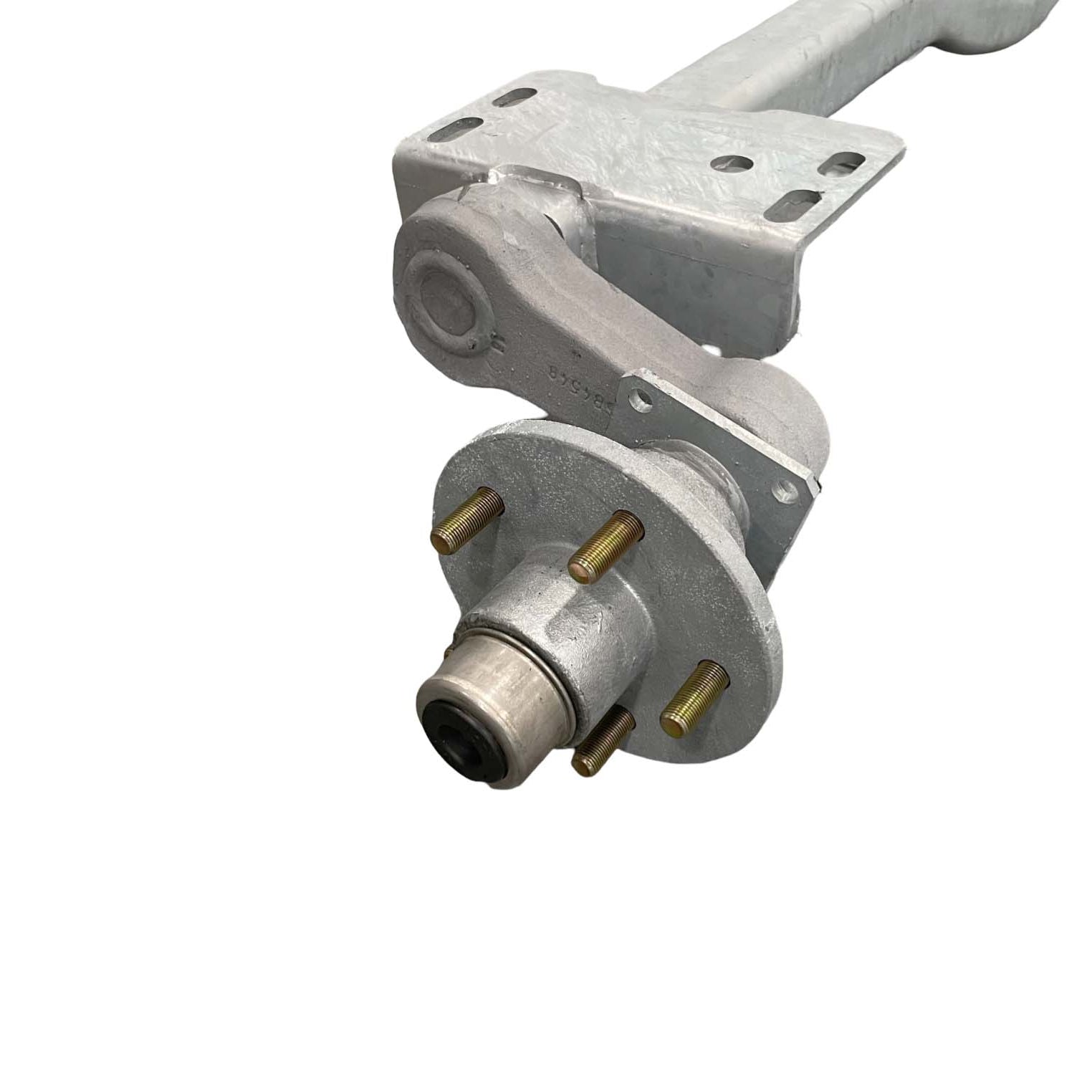

Introducing the universal hot-dipped galvanized replacement torsion axle, designed for durability and efficiency. This axle features GalvX coated cast steel torsion arms set at a precise 35-degree angle, ensuring optimal performance and stability.
Specifications:
-
Axle Type:
2-1/2″ x 2-1/2″ Square – Galvanized Torsion Axle -
Load Rating:
3,500 lbs. -
Overall Length:
99″ (measured from end of spindle to end of spindle) -
Mounting Bracket Center:
75″ -
Outside to Outside on Bracket:
80″ -
Mounting Holes:
2-1/2″ x 8-1/4″ on center -
Brake Flange to Brake Flange:
86.68″ -
Hub Face Length:
93″ -
Hub Type:
5 bolt – 1-3/8″ x 1-1/16″ (hubs and bearings included) -
Camber:
1° per side (welded at spindles) -
Torsion Arm:
Set at 35°
This torsion axle is equipped with quick-change removable spindles, making maintenance and replacements hassle-free. Upgrade your trailer with the reliability and strength of our galvanized torsion drop center axle.
