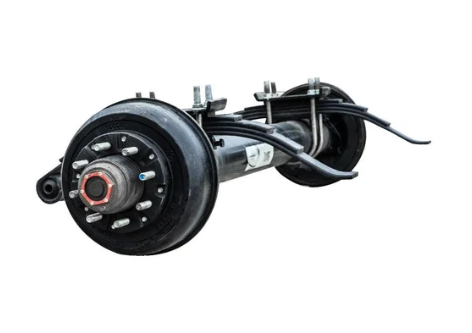

10k Lippert Trailer Axle – 10000 lb Electric Brake 8 lug (With Springs and Ubolts)
$1,982
10K Lippert Electric Brake Trailer Axle — Sprung — 10,000 lb capacity | 8×6.5 | Fully assembled with springs & u-bolts
The 10,000 lb Lippert electric brake axle, fully assembled with slipper springs and u-bolts already mounted. Oil-bath lubrication, 5″ steel tube, and 5/8″ studs on an 8×6.5 pattern.
Axle Specifications:
- Load rating: 10,000 lbs (10K)
- Axle type: Electric Brake (Oil Bath)
- Brake size: 12¼″ × 3⅜″ electric drum
- Tube diameter: 5″ straight steel axle tube
- Hubface/Spring Center: 74/46
- Bolt pattern: 8×6.5
- Stud size: 5/8″
- Spring mount: Sprung — springs & u-bolts pre-mounted
- Product weight: 435 lbs
- Lubrication: Oil Bath
- Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
- ABS: Not compatible with ABS systems
How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.
What’s Included (Fully Assembled):
- (1) Fully Assembled 10k Lippert Electric Brake Oil Bath Axle — 74/46 — 8×6.5
- (2) 5k 30 1/2″ x 2.5″ 5-Leaf HD Slipper Springs — installed
- (1) 10k U-Bolt Kit (5/8″, 5″ tube) — installed
Key Benefits:
- Sprung — springs & u-bolts pre-mounted — ready to bolt on
- Oil-bath lubrication — cooler-running bearings for sustained highway duty
- 5″ high-strength steel tube — heavy-duty weight handling
Ideal For:
- Gooseneck & lowboy trailers
- Flatbed & car hauler trailers
- Dump & equipment haulers
- Commercial & fleet builds
Why Buy from The Trailer Parts Outlet?
- Fast shipping — order today, ships tomorrow
- Bulk & wholesale options available
- Financing options
- Dedicated expert support
