TIEDOWN 2,200 lb Leaf Spring Suspension System #K71-G02-06
$143
TIEDOWN 2,200 lb. Leaf Spring Suspension Kit #K71-G02-06
Product Summary
The TIEDOWN Suspension Kit is designed for installing a 2,200 lb. capacity 1-3/4″ round tube axle on your trailer.

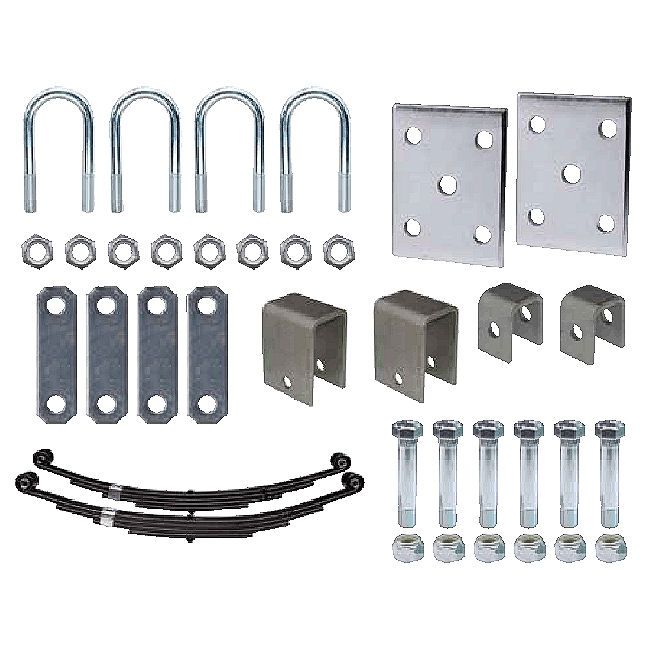

Kit Components:
- (2) Double Eye Leaf Springs:
- Capacity: 2,200 lbs.
- Length: 25-1/4″
- Width: 1-3/4″
- Configuration: 3 leaves
- (2) Weld On Front Spring Hangers:
- Measurement: 3-1/4″ from inside top of hanger to hole center
- (2) Weld On Rear Spring Hangers:
- Measurement: 7/8″ from inside top of hanger to hole center
- (4) Shackle Links:
- Length: 4-1/4″
- Hole Center: 3-1/4″
- Fits: 9/16″ bolts
- (6) Shackle Bolts:
- Material: Zinc
- Size: 9/16″ x 3″
- (1) Axle Tie Plate Kit with U-Bolts:
- Size: 1/2″ x 1-3/4″ x 4-3/8″
Cross Reference
- Part Number: 86540
This comprehensive kit ensures all necessary components are included for an effective installation.
Description
TIEDOWN 2,200 lb. Leaf Spring Suspension Kit #K71-G02-06
Upgrade your trailer’s performance with the TIEDOWN 2,200 lb. Leaf Spring Suspension Kit. Designed by Tie-Down Engineering, this comprehensive kit includes everything you need to install a robust 1-3/4″ round tube axle, ensuring a reliable capacity of 2,200 lbs.
Kit Includes:
- (2) Double Eye Leaf Springs
- Combined capacity: 2,200 lbs.
- Dimensions: 25-1/4″ length, 1-3/4″ wide with 3 leaves
- (2) Weld On Front Spring Hangers
- Measurement: 3-1/4″ from the inside top of the hanger to hole center
- (2) Weld On Rear Spring Hangers
- Measurement: 7/8″ from the inside top of the hanger to hole center
- (4) Shackle Links
- Length: 4-1/4″
- Hole Center: 3-1/4″
- Compatible with 9/16″ bolts
- (6) Shackle Bolts
- Material: Zinc
- Size: 9/16″ x 3″
- (1) Axle Tie Plate Kit with U-bolts
- Dimensions: 1/2″ x 1-3/4″ x 4-3/8″
Cross Reference Number: 86540
Enhance your trailer’s durability and stability with the TIEDOWN Leaf Spring Suspension Kit. Perfect for heavy-duty use and easy to install!
