TIEDOWN 3500 lb. Tandem Leaf Spring Suspension Kit, Model #86542
$359
TIEDOWN Tandem 3500 lb. Leaf Spring Suspension Kit, #86542
Product Summary
The TIEDOWN Tandem 3500 lb. Leaf Spring Suspension Kit is designed for trailers requiring two 3500 lb. capacity axles with 2-3/8″ round tubes.

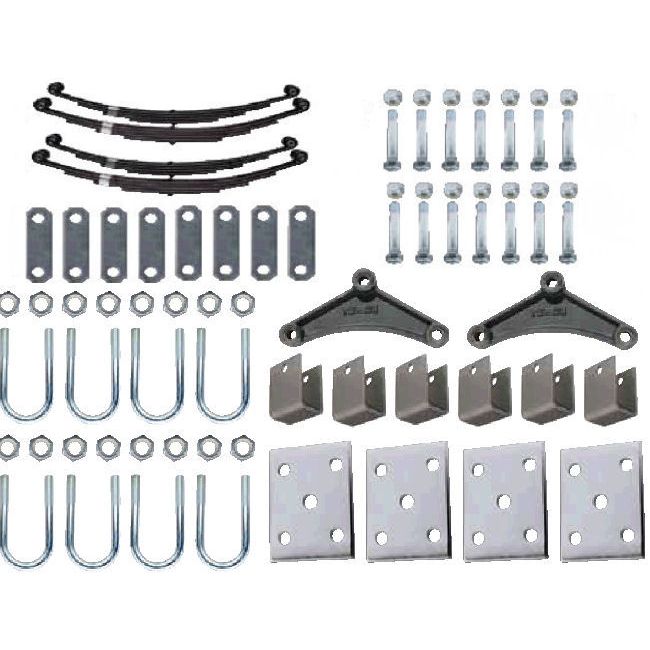

Kit Components:
- Leaf Springs: (4) Double Eye leaf springs, 1850 lbs capacity, 25-1/4″ length, 1-3/4″ width (4 leaves).
- Spring Hangars: (6) Weld On Front, Rear & Center Spring Hangers, 3-1/4″ inside top of hanger to hole center.
- Equalizers: (2) Equalizers, 7-3/4″ x 2-7/8″ (model EQ-1).
- Shackle Links: (8) Shackles, 4-1/4″ length, 3-1/4″ hole center, compatible with 9/16″ bolts.
- Shackle Bolts: (14) Zinc-coated, 9/16″ x 3″.
- Axle Tie Plate Kit: (2) with u-bolts, 1/2″-13 x 2.56″ x 5.38″, 2″ thread length.
Note: The kit is not compatible with Square U Bolts, only with 2-3/8″ Round U Bolts.
Description
TIEDOWN Tandem 3500 lb. Leaf Spring Suspension Kit, #86542
Upgrade your trailer’s performance with the TIEDOWN Tandem 3500 lb. Leaf Spring Suspension Kit. Designed by Tie-Down Engineering, this comprehensive kit includes everything you need to install two 3500 lb. capacity 2-3/8″ round tube axles.
Kit Includes:
- (4) Double Eye Leaf Springs
- Capacity: 1850 lbs.
- Length: 25-1/4″
- Width: 1-3/4″
- Number of Leaves: 4
- (6) Weld-On Spring Hangers
- Types: Front, Rear & Center
- Measurement: 3-1/4″ inside top of hanger to hole center
- (2) Equalizers
- Dimensions: 7-3/4″ x 2-7/8″ (EQ-1)
- (8) Shackle Links
- Length: 4-1/4″
- Hole Center: 3-1/4″
- Fits: 9/16″ bolts
- (14) Shackle Bolts
- Material: Zinc
- Size: 9/16″ x 3″
- (2) Axle Tie Plate Kits with U-Bolts
- Size: 1/2″-13 x 2.56″ x 5.38″
- Thread Length: 2″
Note: This kit is only compatible with 2-3/8″ Round U-Bolts; Square U-Bolts are not available.
Elevate your trailer’s suspension system with the TIEDOWN Tandem 3500 lb. Leaf Spring Suspension Kit!
