TIEDOWN Tandem Leaf Spring Suspension Kit, 6,000 lb Capacity, Model #86549
$377
TIEDOWN Tandem 6,000 lb. Leaf Spring Suspension Kit, #86549
Overview
The TIEDOWN Tandem 6,000 lb. Leaf Spring Suspension Kit is designed for installing two 6,000 lb. capacity 3″ round tube axles to your trailer.

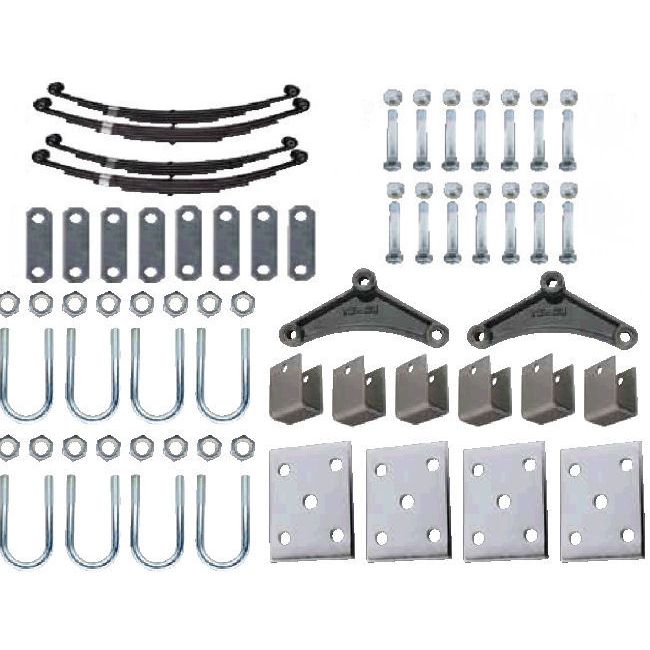

Kit Includes
- Leaf Springs: (4) Double Eye leaf springs, 3,000 lb. capacity, 25-1/4″ length, 1-3/4″ width (4 leaves)
- Hangers: (6) Weld On Front, Rear & Center Spring Hangers – 3-1/4″ inside top of hanger to hole center
- Equalizers: (2) Equalizers – 7-3/4″ x 2-7/8″ (Model: EQ-1)
- Shackles: (8) Shackle Links – Length: 4-1/4″, Hole Center: 3-1/4″, fits 9/16″ bolts
- Shackle Bolts: (14) Zinc shackle bolts – 9/16″ x 3″
- Axle Tie Plate Kit: (2) with u-bolts – 1/2″-13 x 3.06″ x 7″, 2″ thread length
Note
Supplies are limited.
Description
TIEDOWN Tandem 6,000 lb. Leaf Spring Suspension Kit, #86549
Upgrade your trailer with the TIEDOWN Tandem Axle Suspension Kit, designed for easy installation of two 6,000 lb. capacity 3″ round tube axles. This comprehensive kit includes all the essential components you need for a reliable suspension system.
Kit Includes:
- (4) Double Eye Leaf Springs
- Capacity: 3,000 lbs.
- Length: 25-1/4″
- Width: 1-3/4″
- Number of Leaves: 4
- (6) Weld-On Front, Rear & Center Spring Hangers
- Measurement: 3-1/4″ inside top of hanger to hole center
- (2) Equalizers
- Size: 7-3/4″ x 2-7/8″ (Model: EQ-1)
- (8) Shackle Links
- Length: 4-1/4″
- Hole Center: 3-1/4″
- Fits: 9/16″ bolts
- (14) Shackle Bolts
- Material: Zinc
- Size: 9/16″ x 3″
- (2) Axle Tie Plate Kits with U-Bolts
- Bolt Size: 1/2″-13 x 3.06″ x 7″
- Thread Length: 2″
Supply Limited
Ensure your trailer is equipped with the durability and performance it needs with this TIEDOWN suspension kit.
